Double- layer Automatic Bottle Packing Machine For Chemical Bottle With Speed 5000pcs .High Sealing Function
Equipment Overview of Bottle Packing Machine
double-layer automatic bottle packing machine for packaging hollow plastic containers is involved.
It comprises two sets of conveying modules arranged front-to-back, with each set consisting of two conveying structures distributed left-to-right. Each conveying structure includes a bow-shaped fixed frame, inside which two conveyor shafts are rotatably mounted on the upper and lower sides. Conveyor belts are laid over the two conveyor shafts. Two sets of gripping structures are arranged on the outer surface of the conveyor belts, positioned diagonally relative to each other. By performing automatic dual-bag packaging of plastic containers, this system effectively simplifies the packaging process, reduces labor requirements, and enhances operational efficiency. It also prevents tearing or damage to packaging bags that may occur during manual packaging, thereby improving packaging quality.
Key Features of Bottle Packing Machine
- Imported load cells and advanced PLC control system for real-time monitoring
- Automatic alarm and fault notification functions
- Constant-temperature heating plate with pressure control system for secure, leak-proof seals
- Extended product shelf life through reliable sealing technology
- High compatibility with various packaging materials including paper bags, plastic bags, woven bags, and composite films
- User-friendly touchscreen interface for simple operation
- Quick parameter adjustment for different bottle or bag sizes
Double-Layer Bottle Packing Machine Layout Diagram

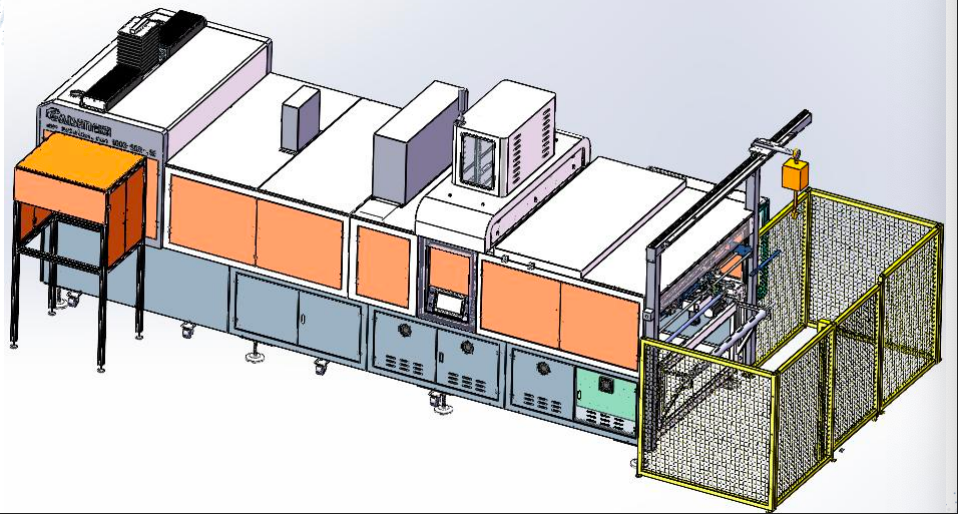

Product Drawings of Bottle Packing Machine
Technical Specifications of Bottle Packing Machine
| Product Size |
DIA55.88 mm × H140.6 mm |
| Sealing Size |
L443mm × W475mm × H140.6mm |
| Packing Configuration |
8pcs/line × 9line |
| Packaging Film Thickness |
0.07 mm |
| Packaging Mode |
8×9=72 bags/hour |
| Production Capacity |
5000pcs per hour |
Ordering & Delivery Terms of Bottle Packing Machine
| Product Description |
Twice-Cycle Bottle Packing Machine withTurntable and Auto Assembly |
| VAT Status |
Included |
| Place of Origin |
China |
| Price Validation |
100 days |
| Payment Terms |
T/T, 30% deposit, 70% balance before loading against FAT |
| Delivery Time |
35 days after receipt of advanced payment |
| Warranty |
1 year for complete machine, extended coverage for software & system |
| Commissioning |
Free commissioning within 3 days (customer covers local accommodation, food, and tickets) |
Additional commissioning time charged at USD 150/day
After-Sales Service of Bottle Packing Machine
Full product quality traceability with 1-year warranty period starting from equipment acceptance date. Free maintenance during warranty period with service charges applied for post-warranty support.
Daily operation and maintenance services include free remote support through Pinchi Tech AI cloud platform for system updates, algorithm settings, software adjustments, and technical assistance.
