Automatic Stainless Steel Bottle Shrinking Machine NC-350 with 7200 Bottles/Hour Speed for Round and Flat Bottles
Bottle Shrinking Machine NC-350

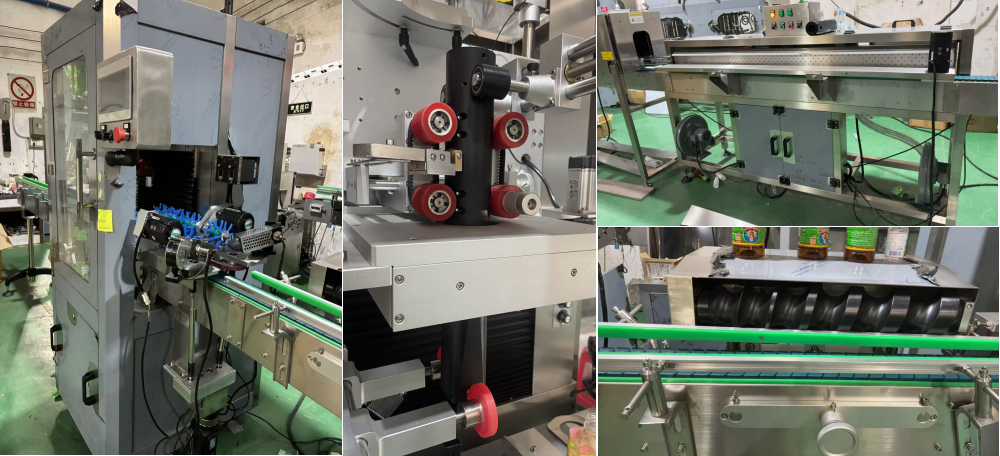

The NC-350 Bottle Shrinking Machine is a versatile automatic sleeve applicator designed for various container types including round, flat, square, curved bottles, and cup-shaped containers. Ideal for food and beverage, medical, daily chemical, and other light industrial sectors.
Equipment Features of Bottle Shrinking Machine
- Durable Construction: Primary components made from extruded aluminum profiles and SUS304 stainless steel for waterproofing, rust resistance, and structural stability
- Precision Cutting: Five-blade cutting assembly ensures precise, stable operation with excellent cut surface flatness
- Optimized Drive System: Integrated structure for high and low-speed operation with easy height adjustment
- Advanced Label Feeding: Efficient material changeover with low-material alert system
- Premium Control System: Imported high-end servo control for stable and precise operation
Technical Specifications of Bottle Shrinking Machine
| Host Dimensions: |
2100L * 1150W * 2000H (mm) |
| Conveyor Belt Frame: |
2 meters included |
| Machine Weight: |
Approximately 400KG |
| Bottle Diameter Range: |
Ø60-Ø120 (mm) |
| Bottle Height Range: |
100-320 (mm) |
| Applicable Bottle Type: |
Round containers |
| Label Length: |
80-285mm (Maximum) |
| Label Thickness: |
0.035-0.08mm |
| Operating Speed: |
7200 bottles/hour (normal operation) |
| Power Consumption: |
2.5KW (excluding shrinkage section) |
| Power Supply: |
220V |
Technical Drawing
Ordering & Payment Information
| Product Model |
7200 Bottles/Hr Automatic Bottle Shrinking Machine for 80mm-285mm Sleeve Labeling |
| Place of Origin |
Made in China |
| Price Validation |
100 days |
| Payment Terms |
T/T, 30% deposit, 70% balance before loading against FAT |
| Delivery Time |
35 days after receipt of advanced payment |
| Warranty |
1 year for complete machine, extended coverage for software & system |
| Commissioning |
Free commissioning within 3 days (customer covers local accommodation, food, and tickets) |
After-Sales Service & Support
Quality Assurance: Complete product quality traceability with 1-year warranty from equipment acceptance date
Maintenance Services: Free maintenance during warranty period; travel and material costs apply for post-warranty service
Remote Support: Free online operation and maintenance services via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments
Note: Different bottle shapes or sizes may require replacement of center guide column, bottle screw, and knife disc. Conveyor belt power in the labeling section is controlled by the labeling machine.
